Measuring oil engine Rotational Speed Sensor , thermal expansion
JM-X-3 Series Intelligent Travel Monitoring and Protection Device
Use
This series of devices specially designed for monitoring and
measuring oil engine, thermal expansion, power limiter,
synchronizer, activated value and etc., in various ratating
mechanisms, it can also automatically give alarm signals,
protective shut-down signals and 4~20mA current output.
Functions
1.Highly Inteligent,all parameters can be set on a control panel.
2.Suitable for on-line monitoring for a long time, easy to install
and debug, needing no site maintenance;
3.2 level alarm switch output.
4.4~20mA analog current output
5.Free configurations of measuring range, alarm and danger value.
6.Password protection on parameter configuration.
7.Automatic record and inquirieof maximum sample value.
Technical Parameters
1.Display mode: 4 digit 0.8 inch digital LED display.

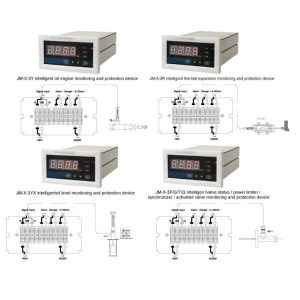

2.Measuring range:JM-X-3R intelligent thermalexpension monitoring
and protection device: 0~35.0mm
JM-X-3Y intelligent oil engine monitoring and protection device:
0~250mm
JM-X-3XY intelligent oil level monitoring and protection device: ±400mm
JM-X-3F intellgent value status monitoring and protection
device:0~50.0mm
JM-X-3G intelligent power limiter monitoring and protection device:
0~50.0mm
JM-X-3T intelligent synchronizer monitoring and protection device:
0~50.0mm
JM-X-3Q intelligent activataed value monitoring and protection
device:0~50.0mm
3.Measuring accuracy: ±0.5 class, linear error≤1％FS
4.Input signals: Thermal expension: TD-2thermal expansion sensor
signal
Oil engine: TD-1 oilengine sensor signal
Oil level: UT-81oillevel sensor signal
Value status, power liniter, synchonizer, activated value: TDZ-1
sensor signal
5.Output signals: Current output: 4~20mA (load≤1KΩ)
2 level switch outpu: DC 27V/2A or AC 250V/5A
6.Environmental temperature: -10~65℃ (Relative humidity: 85％)
7.Power voltage: AC 220V/50Hz ±10％
8.Installation: Disk
9.Extermal dimensions: 95mm(height)×170mm(length)×260mm(depth)
10.Hole size: 77mm(height)×152mm(length)
