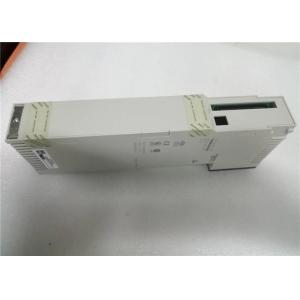

Schneider Electric 140NOE51100 Modicon Quantum PLC Controller New Original

Ask Lasest Price
Brand Name :	Schneider
Model Number :	140NOE51100
Price :	New original box
Delivery Time :	3-4 working days

Add to Cart

Product Details
Company Profile

Schneider Electric 140NOE51100 Modicon Quantum PLC Controller New Original

Schneider Electric 140NOE51100 Modicon Quantum Processor New Original

Quick details:

SCHNEIDER ELECTRIC
MODICON
140NOE51100
CONTROLLER QUANTUM PROCESSOR OBSOLETE 12-01-18
AVAILABLE
New one with one year warranty and used one with six months warranty
Weight: 2.00lbs

Similar Model Products

Analog I/O modules	Discrete I/O modules
140ACI03000	140DDI15310	140DAI55300	140DAO84210
140ACI04000	140DDI35300	140DAI74000	140DAO84220
140ACO02000	140DDI35310	140DAI75300	140DAO85300
140ACO13000	140DDI36400	140DSI35300	140DRA84000
140AII33000	140DDI67300	140DDO15310	140DRC83000
140AII33010	140DDI84100	140DDO35300	140DVO85300
140AIO33000	140DDI85300	140DDO35301	140DDM39000
140AMM09000	140DAI34000	140DDO35310	140DDM69000
140ARI03010	140DAI35300	140DDO36400	140DAM59000
140ATI03000	140DAI45300	140DDO84300	140DII33000
140AVI03000	140DAI54000	140DDO88500	140DIO33000
140AVO02000	140DAI54300	140DAO84000	140DAO84010

(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.

More Info on the 140NOE51100 :

Unity Processor Modicon Quantum - 548 Kb - 66 Mhz
Quantum | 140NOE51100 | Modicon | 140 CPU 311 10 | Processor 400K RAM
Unity processor Modicon Quantum - 548 kB - 66MHz Integrated connection type 1 Modbus Plus 2 Modbus Checks Process control Memory description Internal RAM 548 kB Switch function Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off Application structure No auxiliary task 64 interrupt tasks 64 I/O interrupt tasks 16 timer interrupt tasks 1 periodic fast task 1 cyclic/periodic master task Execution time per instruction 0.12...0.585 μs on word 0.12...0.585 μs Boolean 0.1...0.27 μs on fixed-point arithmetic 0.1...0.27 μs floating points Execution time for 1 K instruction 2.49 65 % Boolean and 35 % numerical 1.86 100 % Boolean System overhead 1 ms - master task 0.2 ms - fast task Bus current requirement 1800 mA Local signalling 1 LED red for communications error on the Modbus Plus port (ERROR A) 1 LED red for battery needs replacing or is not present (BAT LOW) 1 LED orange for write-protected memory (memory port) 1 LED green for CPU has passed the power-up diagnostic tests (READY) 1 LED green for CPU has been started and is solving logic (RUN) 1 LED green for communications are active on the Modbus port (Modbus) 1 LED green for communications are active on the Modbus Plus port (Modbus Plus) Electrical connection 2 female connectors, connector type: SUB-D 9 for connecting to the Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network.

Specifications:

Manufacturer:	Modicon Quantum
Series:	Quantum CPUs
Weight:	2 lb
Clock frequency:	66 MHz
Number of slots:	10
	16
	2
	4
	6
Number of racks:	2 - local rack(s)
Number of distributed I/O station:	63 station(s) - 1 rack(s) - 3 distributed network(s)
Number of remote I/O station:	31 - 2 remote rack(s)
Discrete I/O number:	8000 inputs, 8000 outputs - distributed - per network
	31744 inputs, 31744 outputs - remote
	Unlimited (27 slots max) - local
Analogue I/O number:	500 inputs, 500 outputs - distributed - per network
	1984 inputs,1984 outputs - remote
	Unlimited (27 slots max) - local
Application specific I/O:	Accurate time stamping
	Counter
	High-speed interrupt inputs
	Serial link
Number of optional modules:	6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections:	Unlimited (AS-Interface) - local
	4 (AS-Interface) - remote
	2 (Profibus DP) - local
	2 (Modbus) - RS232/485 Modbus/ASCII
	2 (Modbus Plus) - local
	2 (Ethernet TCP/IP) - local
	2 (AS-Interface) - distributed
	1 (USB)
Integrated connection type:	1 Modbus Plus
	2 Modbus
Checks:	Process control
Memory description:	Internal RAM 548 kB
Switch function:	Slide switch communication port : ASCII/RTU/Memory
	Slide switch memory port/off
Application structure:	No auxiliary task
	64 interrupt tasks
	64 I/O interrupt tasks
	16 timer interrupt tasks
	1 periodic fast task
	1 cyclic/periodic master task

**Ordering and shipping details:**
Category	18150 - QUANTUM CONTROLLERS,HSBY,COMM.
Discount Schedule	PC21
GTIN	00785901663386
Nbr. of units in pkg.	1
Package weight(Lbs)	1.7
Returnability	Y
Country of origin	FR

**Offer Sustainability:**
Sustainable offer status	Green Premium product
RoHS (date code: YYWW)	Compliant - since 0948 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACh	Reference not containing SVHC above the threshold
Product environmental profile	Available
Product end of life instructions	Available

ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.
